NIIMBOT printers protocol

Packet structure

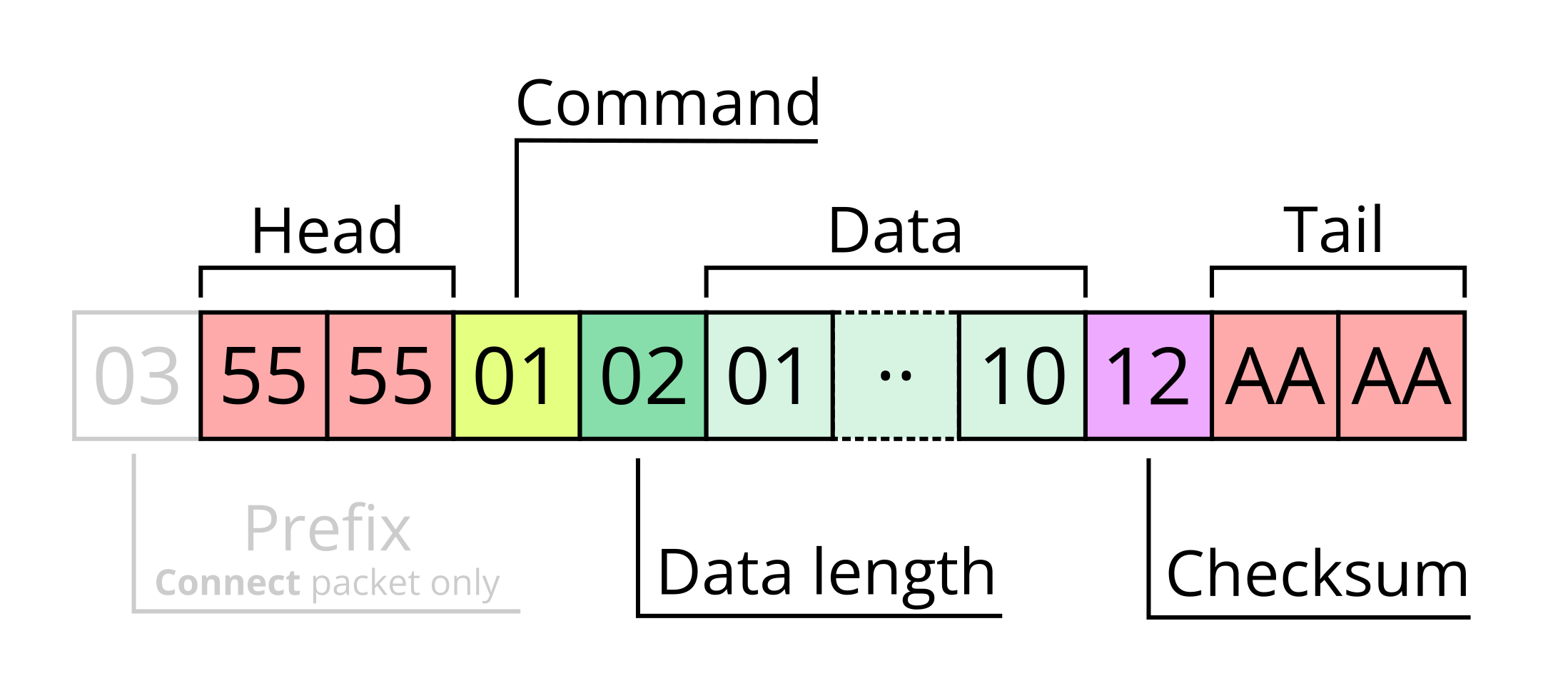

Main packet

• Prefix - prefix 0x03 is present in only one command - Connect.
• Head - always 2 bytes (0x55 0x55).
• Command - command (packet) identifier.
• Data Length - number of bytes of data.
• Data - data with Data length length.
• Checksum - calculated by XOR of all bytes from Command to the last byte of Data (inclusive).
• Tail - always 2 bytes (0xAA 0xAA).

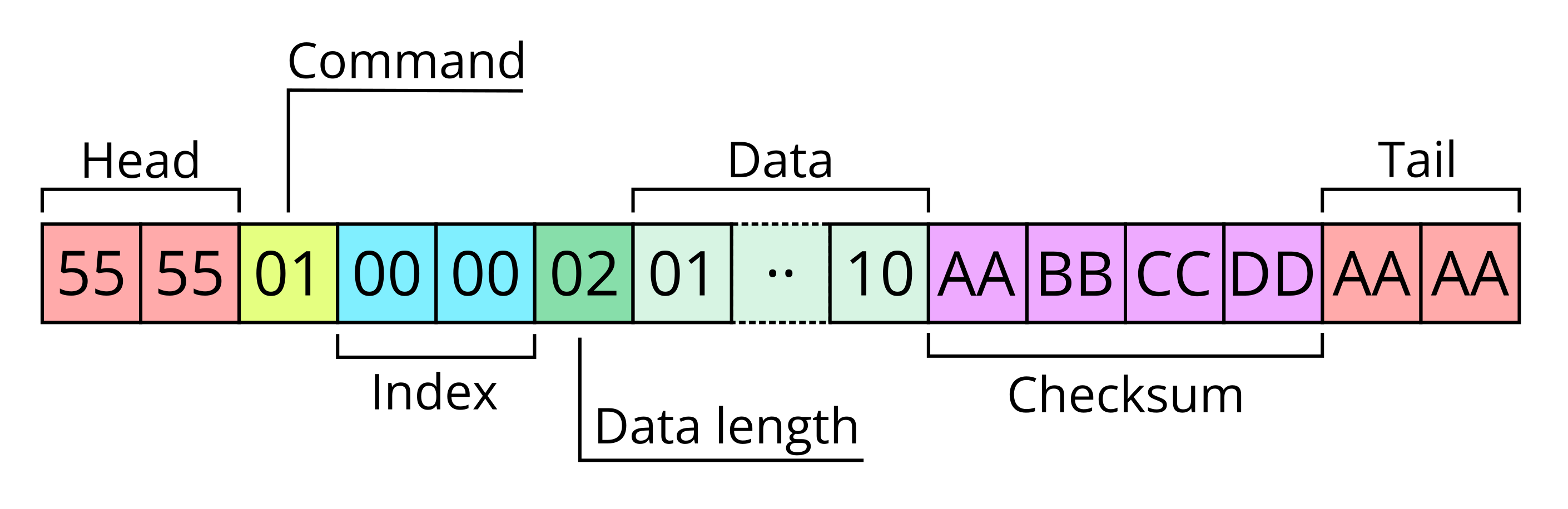

CRC32 (firmware) packet

• Head - always 2 bytes (0x55 0x55).
• Command - command (packet) identifier.
• Index - firmware chunk index, used only in FirmwareChunk and In_RequestFirmwareChunk packets, otherwise equals zero.
• Data Length - number of bytes of data.
• Data - data with Data length length.
• Checksum - crc32 checksum of all bytes from Command to the last byte of Data (inclusive).
• Tail - always 2 bytes (0xAA 0xAA).

List of packet commands

Request ID	Name	Response ID(s)	Simple OUT	Simple IN
0x01	PrintStart	0x02	❌	✅
0x03	PageStart	0x04	✅	✅
0x05	PrinterLog	0x06	✅	❌
0x0b	AntiFake	0x0c	✅	❌
0x0d	GetPrintQuality	0x0d	❌	❌
0x13	SetPageSize	0x14	❌	✅
0x15	PrintQuantity	0x16	❌	✅
0x1a	RfidInfo	0x1b	✅	❌
0x1c	RfidInfo2	0x1d	✅	❌
0x20	PrintClear	0x30	✅	✅
0x21	SetDensity	0x31	❌	✅
0x23	SetLabelType	0x33	❌	✅
0x27	SetAutoShutdownTime	0x37	❌	✅
0x28	PrinterReset	0x38	✅	❌
0x40	PrinterInfo	0x4f, 0x47, 0x4d, 0x4a, 0x41, 0x4c, 0x43, 0x46, 0x48, 0x4b, 0x49, 0x42	✅	❌
0x54	RfidSuccessTimes	0x64	✅	❌
0x58	SoundSettings	0x68	❌	❌
0x59	CalibrateHeight	0x69	❌	❓
0x5a	PrintTestPage	0x6a	✅	✅
0x70	WriteRFID	0x71	❓	❓
0x83	PrintBitmapRowIndexed	❌	❌	❌
0x84	PrintEmptyRow	❌	❌	❌
0x85	PrintBitmapRow	❌	❌	❌
0x8e	LabelPositioningCalibration	0x8f	✅	✅
0xa3	PrintStatus	0xb3	✅	❌
0xa5	PrinterStatusData	0xb5	✅	❌
0xaf	PrinterConfig	0xbf	❌	❌
0xc1	Connect	0xc2	✅	❌
0xda	CancelPrint	0xd0	✅	✅
0xdc	Heartbeat	0xde, 0xdf, 0xdd, 0xd9	❌	❌
0xe3	PageEnd	0xe4	✅	✅
0xf3	PrintEnd	0xf4	✅	✅
0xf5	StartFirmwareUpgrade	0xf6	❌	✅

CRC32 packets:

Request ID	Name
0x91	FirmwareCrc
0x92	FirmwareCommit
0x9b	FirmwareChunk
0x9c	FirmwareNoMoreChunks

Comes from printer only:

Request ID	Name	Client response ID	CRC32
0xe0	In_PrinterPageIndex
0x90	In_RequestFirmwareCrc	0x91	✅
0x9a	In_RequestFirmwareChunk	0x9b	✅
0x9d	In_FirmwareCheckResult		✅
0x9e	In_FirmwareResult		✅

Packet details

Simple request packet

This packet has Request ID, Data length=1, and Data=1.

Checksum will be same as Request ID because N^1^1 == N.

Example (RfidInfo):

55 55 1a 01 01 1a aa aa
       │  │  │  │
       │  │  │  └─ Checksum (1a^01^01)
       │  │  └─ Data
       │  └─ Data length
       └─ RfidInfo command
Copy

Simple response packet

Same format as simple request packet.

Example (In_SetDensity):

55 55 31 01 01 31 aa aa
       │  │  │  │
       │  │  │  └─ Checksum (31^01^01)
       │  │  └─ Data (1 - success, 0 - error)
       │  └─ Data length
       └─ In_SetDensity command
Copy

PrintStart

Can have different format depending on the model.

1 byte (used in D11, B21, D110)

55 55 02 01 01 XX aa aa
       │  │  │  │
       │  │  │  └─ Checksum
       │  │  └─ Always 1
       │  └─ Data length
       └─ PrintStart command
Copy

2 bytes

55 55 01 02 00 01 XX aa aa
       │  │  └──┤  │
       │  │     │  └─ Checksum
       │  │     └─ Total pages (sum of page quantity of each page)
       │  └─ Data length
       └─ PrintStart command
Copy

7 bytes (used in B1 and newer printers)

55 55 01 07 00 01 00 00 00 00 00 XX aa aa
       │  │  └──┤  └──┴──┴──┘  │  │
       │  │     │   Always 0   │  └─ Checksum
       │  │     │              └─ Page color (unknown use)
       │  │     └─ Total pages (sum of page quantity of each page)
       │  └─ Data length
       └─ PrintStart command
Copy

9 bytes

55 55 01 09 00 01 00 00 00 00 00 00 00 XX aa aa
       │  │  └──┤  └──┴──┴──┘  │  │  │  │
       │  │     │   Always 0   │  │  │  └─ Checksum
       │  │     │              │  │  └─ Some flag (unknown use)
       │  │     │              │  └─ Quality (unknown use)
       │  │     │              └─ Page color (unknown use)
       │  │     └─ Total pages (sum of page quantity of each page)
       │  └─ Data length
       └─ PrintStart command
Copy

SetPageSize

Can have different format depending on the model. Column count must be less or equal printhead size.

2 bytes

55 55 13 02 00 f0 XX aa aa
       │  │  └──┤  │
       │  │     │  └─ Checksum
       │  │     └─ Row count (240px)
       │  └─ Data length
       └─ SetPageSize command
Copy

4 bytes

55 55 13 04 00 f0 01 80 XX aa aa
       │  │  └──┤  └──┤  │
       │  │     │     │  └─ Checksum
       │  │     │     └─ Column count (384px)
       │  │     └─ Row count (240px)
       │  └─ Data length
       └─ SetPageSize command
Copy

6 bytes

55 55 13 06 00 f0 01 80 00 01 XX aa aa
       │  │  └──┤  └──┤  └──┤  │
       │  │     │     │     │  └─ Checksum
       │  │     │     │     └─ Copies count
       │  │     │     └─ Column count (384px)
       │  │     └─ Row count (240px)
       │  └─ Data length
       └─ SetPageSize command
Copy

9 bytes

55 55 13 09 00 f0 01 80 00 01 00 00 00 XX aa aa
       │  │  └──┤  └──┤  └──┤  └──┤  │  │
       │  │     │     │     │     │  │  └─ Checksum
       │  │     │     │     │     │  └─ Is divide (0 or 1, unknown use)
       │  │     │     │     │     └─ Some size (unknown use)
       │  │     │     │     └─ Copies count (1)
       │  │     │     └─ Column count (384px)
       │  │     └─ Row count (240px)
       │  └─ Data length
       └─ SetPageSize command
Copy

13 bytes

55 55 13 0d 00 f0 01 80 00 01 00 00 00 00 00 00 00 XX aa aa
       │  │  └──┤  └──┤  └──┤  └──┤  │     │  └──┤  │
       │  │     │     │     │     │  │     │     │  └─ Checksum
       │  │     │     │     │     │  │     │     └─ Part height (unknown use)
       │  │     │     │     │     │  │     └─ Send all (unknown use)
       │  │     │     │     │     │  └─ Cut type (unknown use)
       │  │     │     │     │     └─ Cut height (unknown use)
       │  │     │     │     └─ Copies count (1)
       │  │     │     └─ Column count (384px)
       │  │     └─ Row count (240px)
       │  └─ Data length
       └─ SetPageSize command
Copy

Packet details (image data packets)

See print tasks to understand how to images are printed.

PrintEmptyRow

Used to fill row with blank (white) pixels.

Example:

55 55 84 03 00 04 02 XX aa aa
       │  │  └──┤  │  │
       │  │     │  │  └─ Checksum
       │  │     │  └─ Repeat count (repeat row two times)
       │  │     └─ Row number is 4
       │  └─ Data length
       └─ PrintEmptyRow command
Copy

PrintBitmapRowIndexed

Used when black pixel count is less than 7. Data is encoded with pixel indexes (unsigned 16-bit integers).

Information about Black pixel count segment can be found in API.Utils.countPixelsForBitmapPacket function docs.

Usually printer prints without problems when all of 3 bytes are zeros.

Example:

55 55 83 0a 00 03 02 00 00 02 00 0a 01 40 XX aa aa
       │  │  └──┤  └──┴──┤  │  └──┤  └──┤  │
       │  │     │        │  │     │     │  └─ Checksum
       │  │     │        │  │     │     └─ Draw pixel at x=320
       │  │     │        │  │     └─ Draw pixel at x=10
       │  │     │        │  └─ Repeat count (repeat row two times)
       │  │     │        └─ Black pixel count (see above)
       │  │     └─ Row number is 3
       │  └─ Data length
       └─ PrintBitmapRowIndexed command
Copy

PrintBitmapRow

Used to send full row segment that includes both black and white pixels.

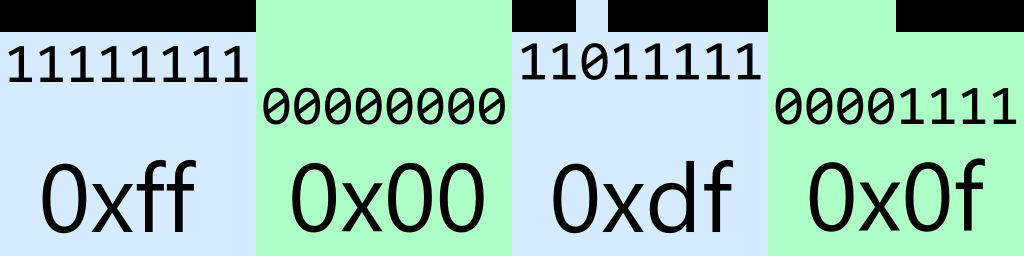

Image row example:

Packet example:

55 55 85 0a 00 00 13 00 00 01 ff 00 df 0f XX aa aa
       │  │  └──┤  └──┴──┤  │  └──┴──┴──┤  │
       │  │     │        │  │           │  └─ Checksum
       │  │     │        │  │           │
       │  │     │        │  │           └─ Draw 32 pixels (19 black, 13 empty)
       │  │     │        │  └─ Repeat count (repeat row 1 time)
       │  │     │        └─ Black pixel count (19)
       │  │     └─ Row number is 0
       │  └─ Data length
       └─ PrintBitmapRow command

Copy

Other packets example

• 55 55 40 01 0b 4a aa aa - get device serial number
• 55 55 1a 01 01 1a aa aa - get rfid data
• 55 55 58 03 01 01 01 5a aa aa - enable Bluetooth connection sound
• 55 55 58 03 01 01 00 5b aa aa - disable Bluetooth connection sound
